Dual Core 1500V DC Silicone Electrical Wire, EN50618 Standard Solar PV Cable

EN50618 1500V DC Dual-Core Solar PV Cable

Model No.: EN50618

Technical Parameters

Size	Cross Section	Conductor Structure	Outer Diameter	Max. DC Resistance at 20℃	Rated Current
mm²	mm²	mm	mm±0.2	Ω/km	A
2*2.5 mm²	2.5 mm²	48*φ0.25mm	5.4*10.9mm±0.2	8.21Ω/km	30 A
2*4.0 mm²	4.0 mm²	56*φ0.285mm	6.0*12.2mm±0.2	5.09Ω/km	50 A
2*6.0 mm²	6.0 mm²	81*φ0.30mm	7.0*14.2mm±0.2	3.39Ω/km	70 A

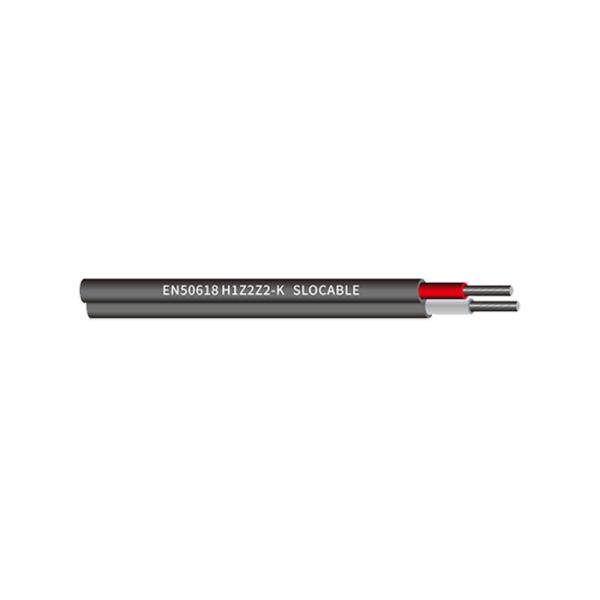

Product Pictures:

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
