Description

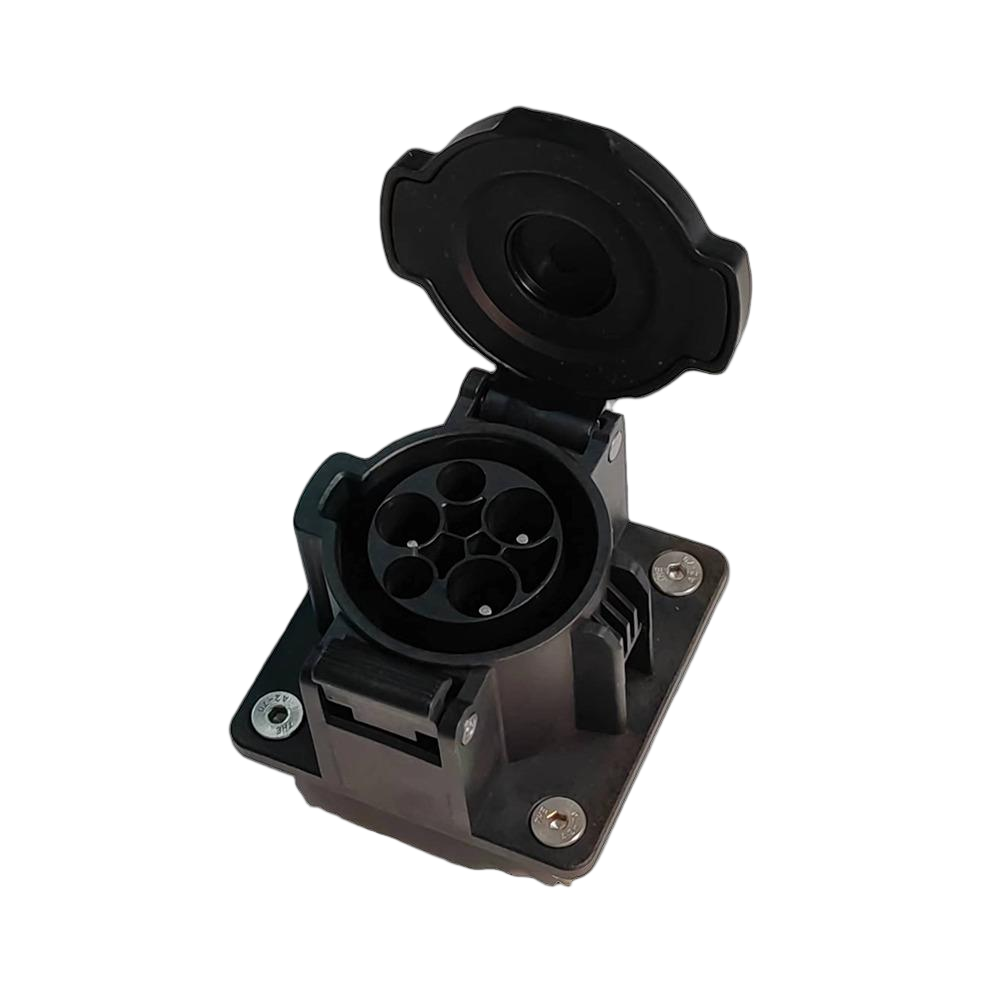

The Neopower European Standard Waterproof EV Charging Dock is
purpose-built for safe, efficient, and durable charging of new
energy vehicles. Featuring a robust internal structure, it
withstands vehicle crushing without compromising performance or
safety. The corrosion-resistant brass contacts are silver-plated
for superior conductivity and reduced power loss. The nylon housing
offers high-temperature resistance and exceptional impact
protection, making it suitable for wide environmental conditions.
With IP54-rated waterproofing, excellent salt spray resistance, and
a design optimized for long service life, this charging dock
ensures reliable operation in both indoor and outdoor settings. Its
compatibility with European standard EV interfaces makes it an
ideal solution for residential garages, workplace charging
stations, and public EV infrastructure. Whether in extreme
temperatures or harsh environments, Neopower delivers consistent,
safe, and efficient charging performance for electric vehicles.
Features
- European standard design with wide EV compatibility
- IP54 waterproof and corrosion-resistant construction
- High-temperature resistant nylon housing
- Silver-plated brass contacts for excellent conductivity
- Strong impact-resistant structure to prevent damage
- Long lifespan with stable performance over time
Application
- Charging new energy vehicles with European standard interfaces
- Suitable for home garages, commercial workplaces, and public EV
stations
- Reliable for outdoor use under various weather conditions
Parameters
| Specification | Details |
|---|
| Rated Current | 48A / 32A / 20A / 16A |
| Rated Voltage | AC 240V |
| Plug-in Durability | 10000 times |
| Fire Degree | UL94-V0 |
| Housing Material | Nylon |
| Surface Coating | Silver plated |
| Test Voltage | DC 3500V |
| Unplugging Force | 250N |
| Wiring Range | 10-14AWG |
| Waterproof Grade | IP54 |
| Operating Temp | -40°C ~ 80°C |
| Salt Spray Resistance | 72h |
| Insulation Resistance | ≥100MΩ MIN |
| Leakage Current | ≤5mA |
| Pollution Level | 2 |
Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, NeoPower delivers top
quality products and excellent services to customers around the
world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality
control system, and its products are CE, TVU, RoHs approved.
